Fountaine Pajot Fountaine Pajot MY 4.S

INVENTORY FOR FOUNTAINE-PAJOT MY 4.S

(This information is not legally binding. Click the inventory buttonon the right for PDF document)

Motor Yacht 4 S - General specifications

Length overall: 11 m / 36. 1ft
Beam overall: 5.1 m / 16.8ft
Draft: 0.8 m / 2.6ft
Air clearance: 3.78 m / 12.4ft
Light Displacement: 9.5T
Standard power: 2 x 150 hp / 2 x 110kW

Tanks capacities

Water tank: 350 l (approx.) |1 x 93 US gallons
Fuel tank: 2 x 600 l (approx.) |1 x 317 US gallons

Autonomy: 1000 MN
Boat EC certified:
category B: ~ 8 people
category C:  ~12 people
Category D: ~20 people
Architect : Daniel ANDRIEU
Interior design: Pierangelo ANDREANI
Builder: FOUNTAINE- PAJOT

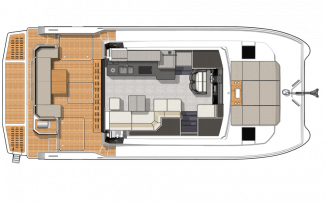

INTERIOR LAYOUT

GENERAL

• Motor Yacht Alpi woodwork
• Motor Yacht laminated floor on Inter1ior floor
• Motor Yacht rot proof glass felt lining
• Motor Yacht cloth for bench cushions
• Polyether foam mattresses
• Permanent natural ventilation via hatches & portlights

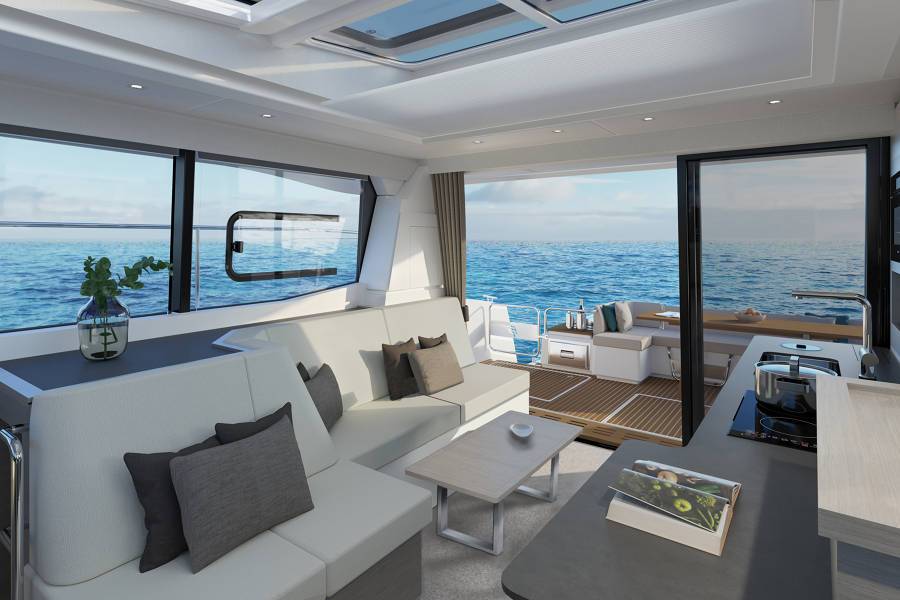

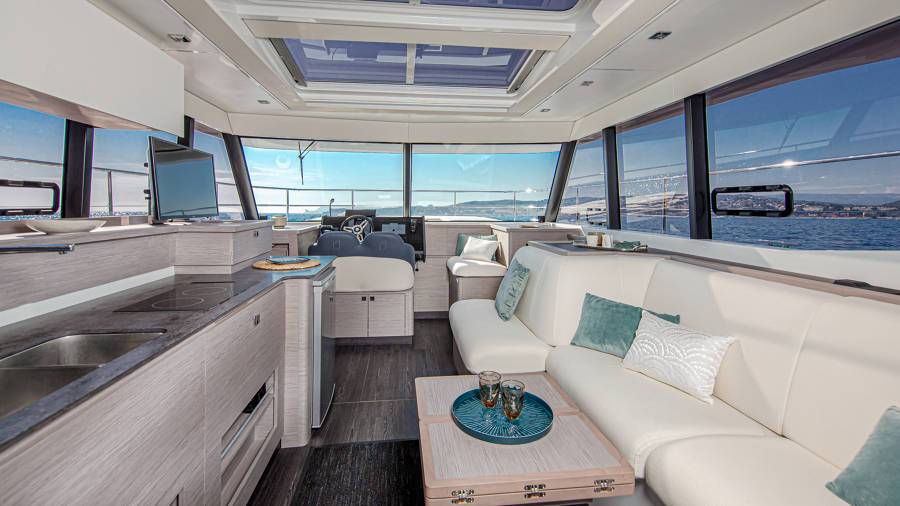

SALOON LAYOUT

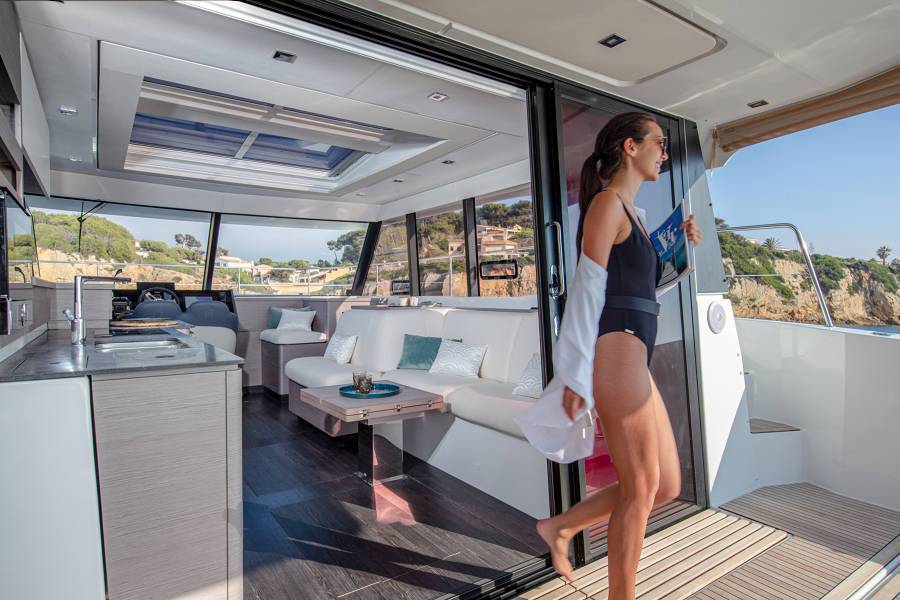

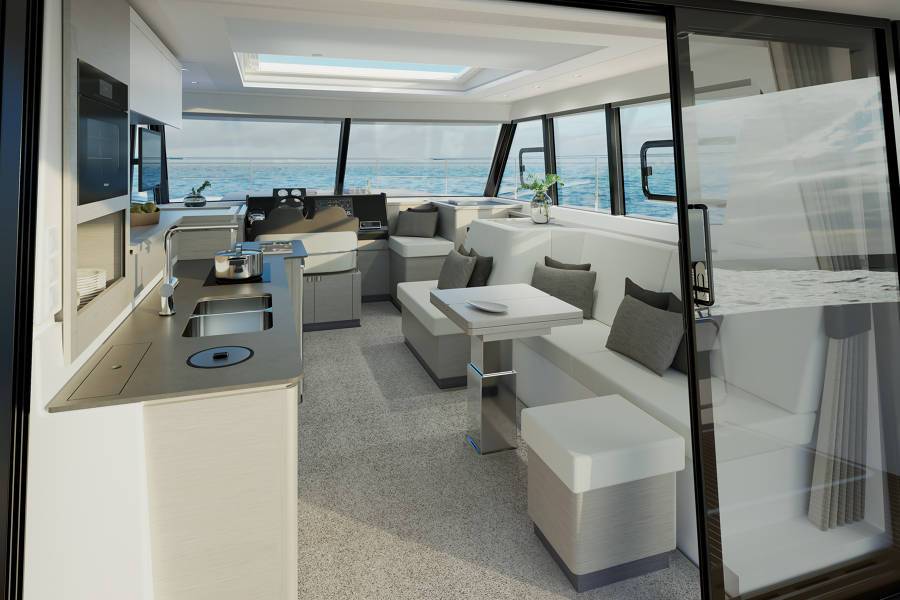

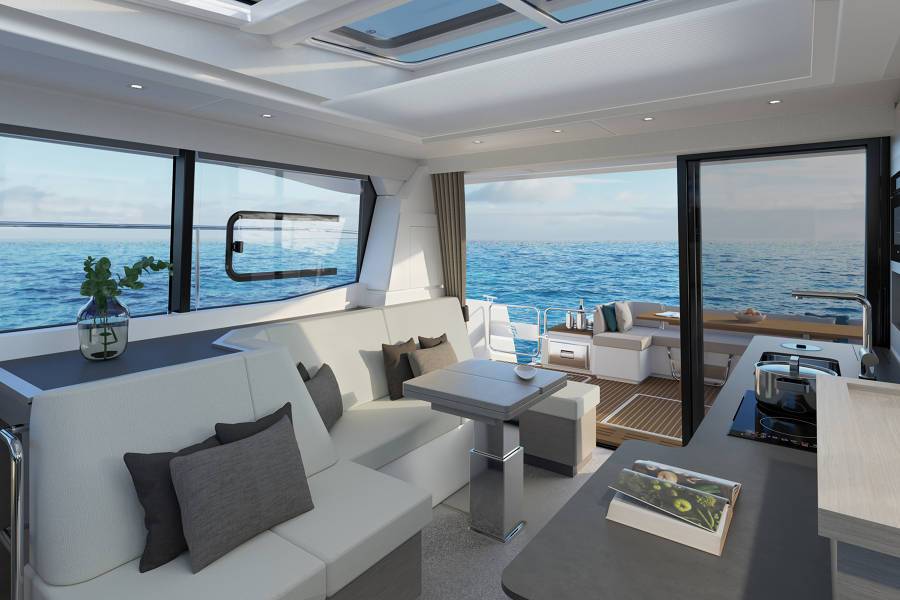

Saloon

• Saloon accessible via a glass sliding door
• Panoramic view through peripheral picture window
• Large fixed sunroof
• Curtain on cockpit entrance door
• Ventilation by portholes
• LED light spots

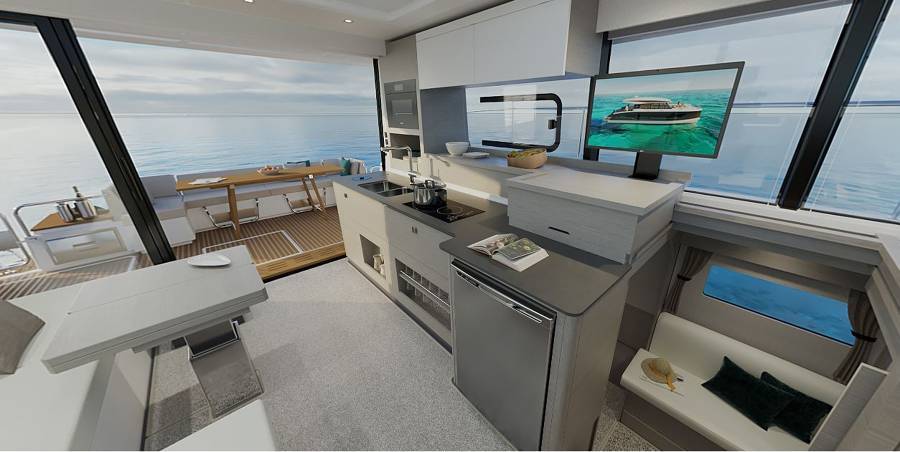

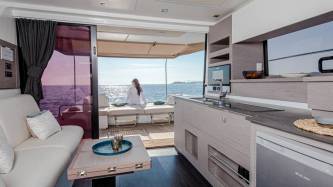

Galley area

• Galley with work-top
• Bin on work-top
• Double stainless steel sinks
• Hot and cold pressurized water, mixer tap
• Cooking hob with 2 large gas plates
• Built-in under counter fridge-freezer
• Approx. 97 L for fridge & 16 L for freeze
• Cupboard + shelves + drawers
• Ventilation via porthole above cooking hob

Lounge area

• Bench seating for 5 + 2 people
• Wooden coffee table
• Standard upholstery according to “Millésime”

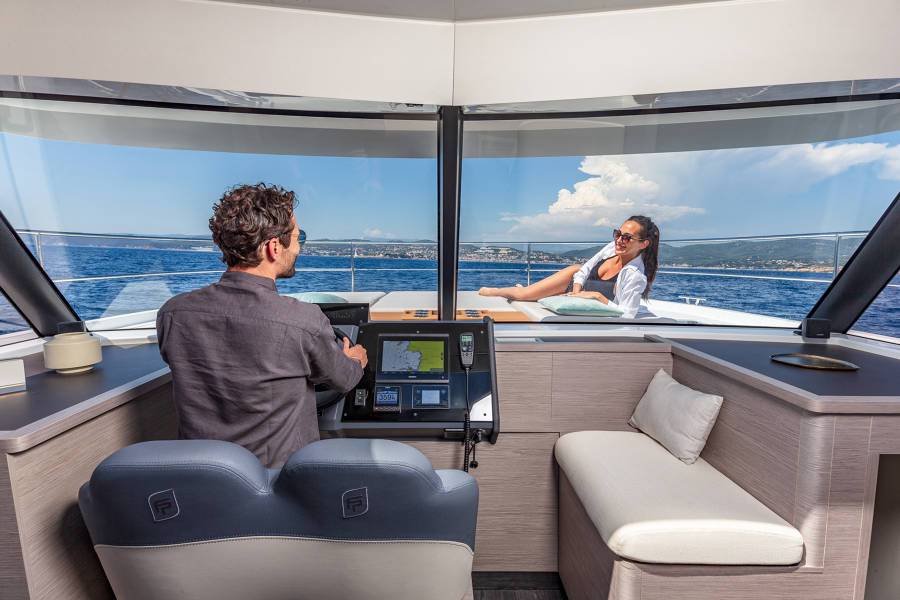

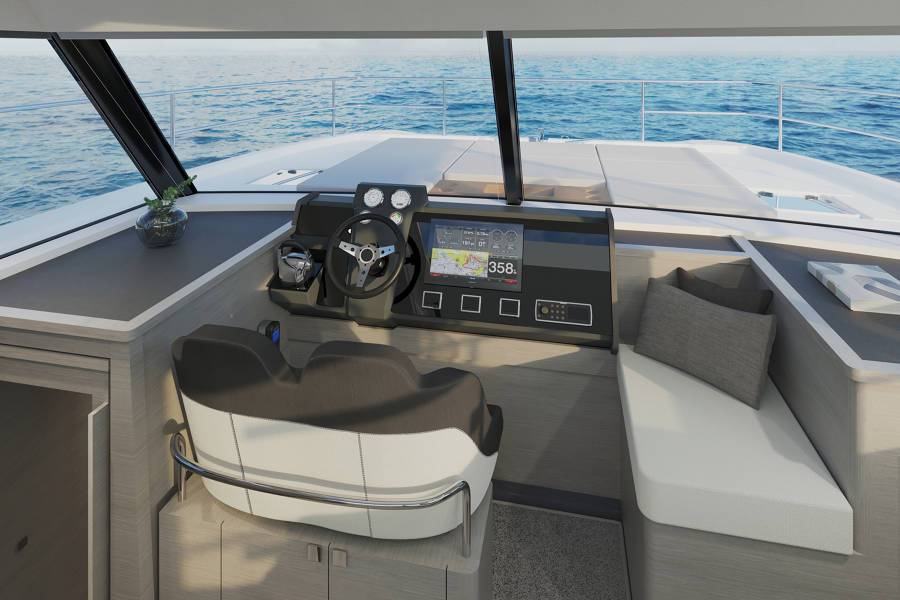

Helm station

• Bench seat for 2
• Large navigation instrument panel
• Windscreen wipers & washers

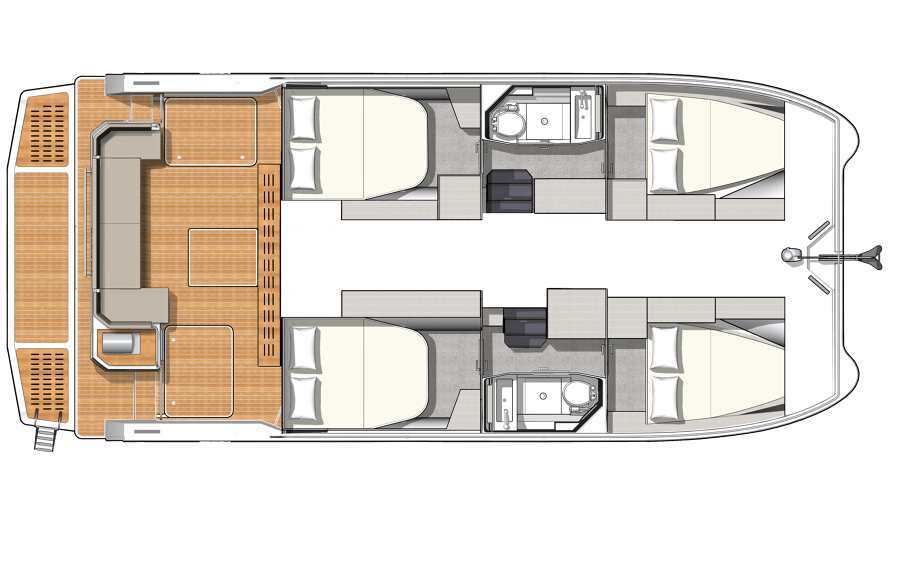

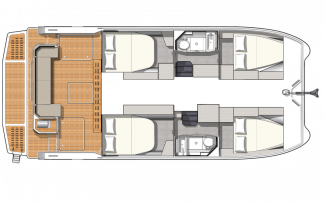

HULL LAYOUT: 4 cabins 2  bathrooms

Port and starboard hull

Main lighting by LED spotlights

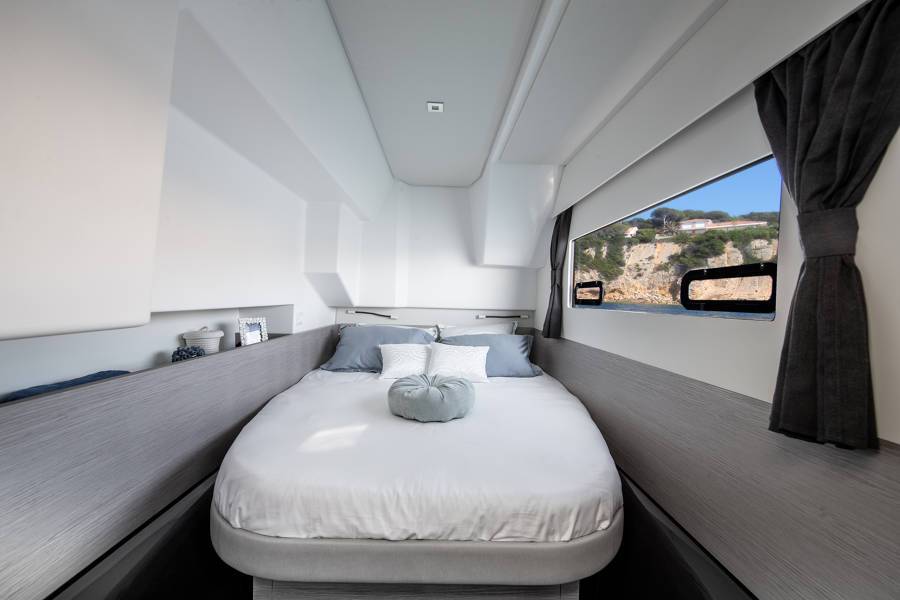

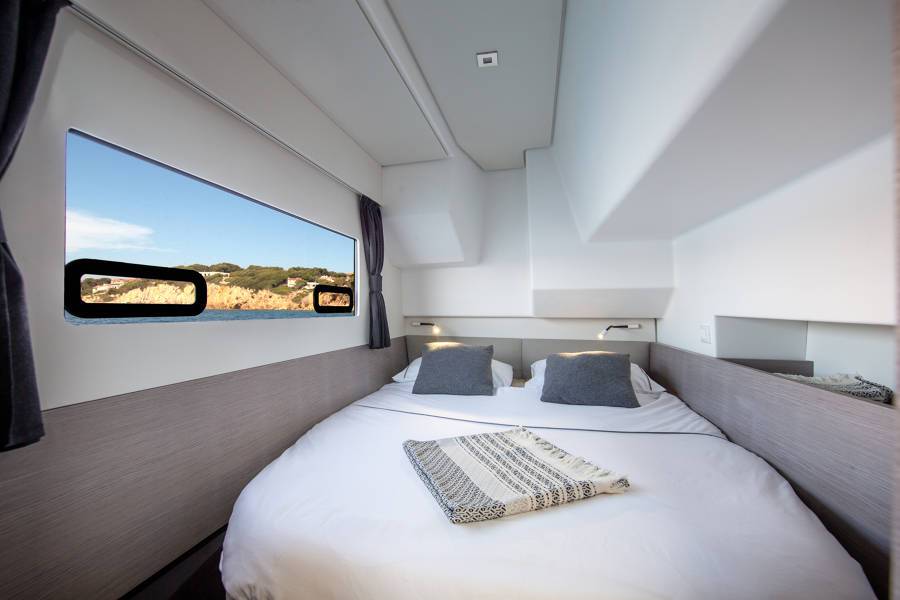

Aft cabins

• Access through wooden door from the passageway
• Double bed 1,60 x 2,00 approx.
• Hanging wardrobe
• Storage under bed
• Large picture window
• Ventilation via portholes
• Bedside reading lights
• Blind on picture window

Bathroom area (shared to 2 cabins)

• Common access via the passageway through wooden door
• Worktop with integrated sink and mirror
• Shower with hot and cold water mixer
• Manual marine toilet
• Bathroom accessories (toilet paper holder + towel)
• Ventilation via porthole

Passageway

• Cupboard

Forward cabins

• Access through wooden door from the passageway
• Double bed (1,40/1,00 x 2,00m)
• Hanging wardrobe
• Storage under the bed
• Large picture window
• Ventilation via porthole and deck hatch
• Bedside reading lights
• Blinds on deck hatch & picture window

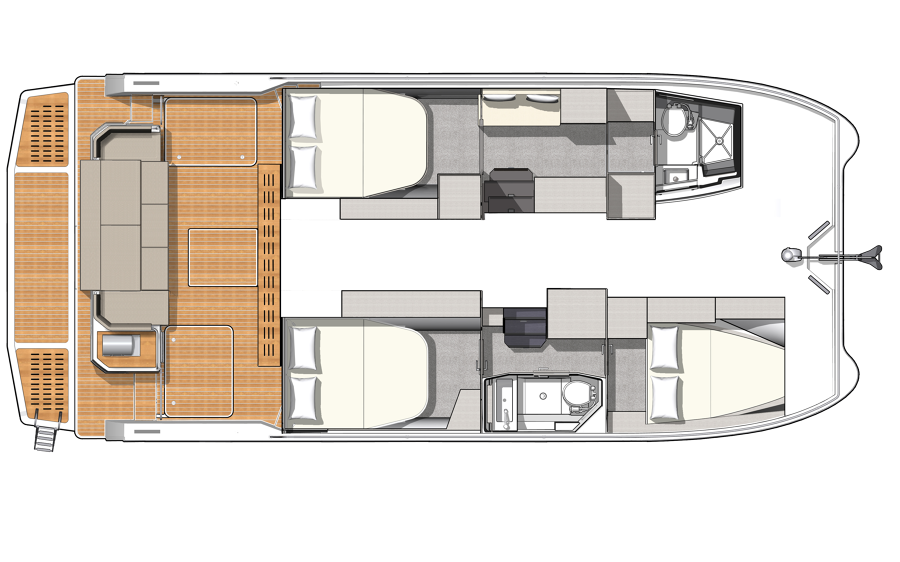

HULL LAYOUT: 3 cabins 2 bathrooms

Main lighting by LED spotlights

Port hull: Owner’s suite

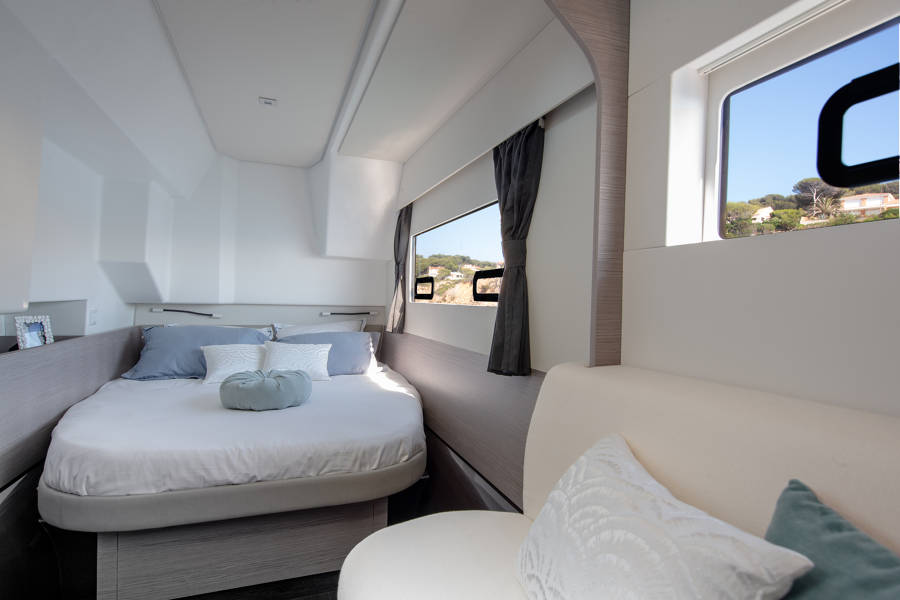

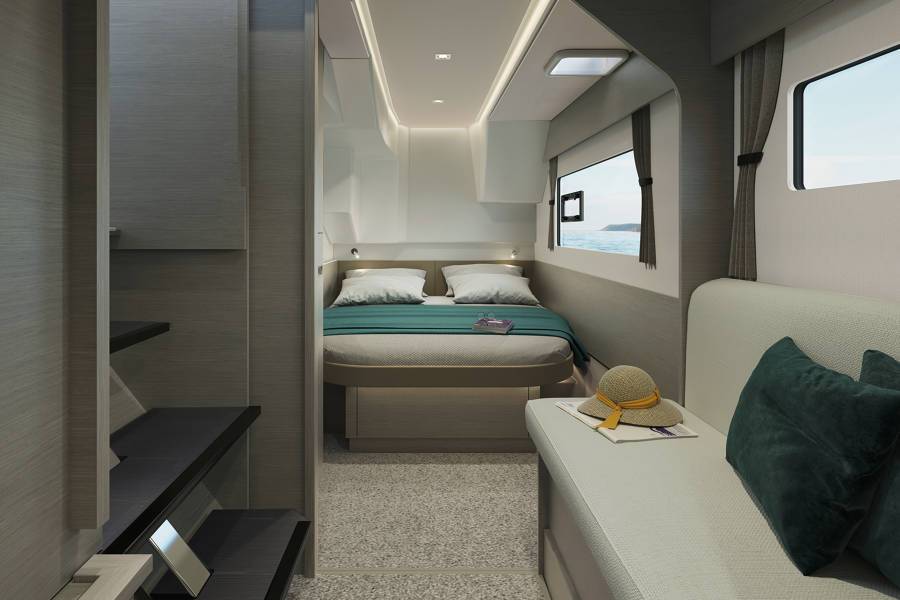

Sleeping area

• Double bed 1.60 x 2.00 approx.
• 2 bedside reading lights
• Storage under bed
• Large picture window
• Ventilation via hull portholes
• Blind on window
• Wardrobe & sofa in the passageway

Laundry area and storage

• Access through wooden door from passageway
• Storage cupboard with shelving and hanging space
• Lining

Bathroom space

• Worktop with sink
• Mirror & shell recess
• Hot and cold water mixer tap
• Separate shower with acrylic screen
• Electric pump for greywater
• shower mixer tap
• Manual marine toilet
• Cupboard
• Hooks
• Ventilation by deck hatch

Starboard hull

Aft cabin

• Access through wooden door from the passageway
• Double bed 1,60 x 2,00 approx.
• Hanging
• Storage under bed
• Large picture window
• Ventilation via portholes
• Blind on picture window
• 2 bedside reading lights

Bathroom area (common to 2 cabins)

• Common access via the passageway through wooden door
• Worktop with integrated sink and mirror
• Shower with hot and cold water mixer
• Manual marine toilet
• Bathroom accessories (toilet paper holder + towel)
• Ventilation via porthole

Passageway

• Cupboard

Forward cabin

• Access through wooden door from the passageway
• 2 bedside reading lights
• Double bed (1,40/1,00 x 2, 00 m)
• Hanging wardrobe
• Storage under the bed
• Large picture widow
• Ventilation via porthole & deck hatch
• Blinds on deck hatch & picture window

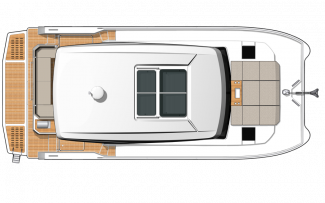

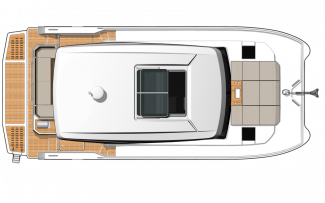

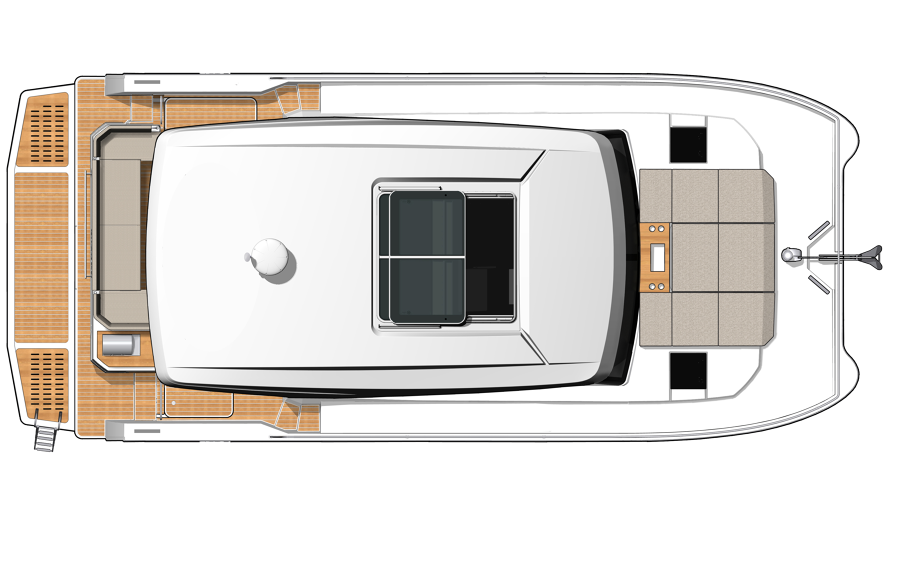

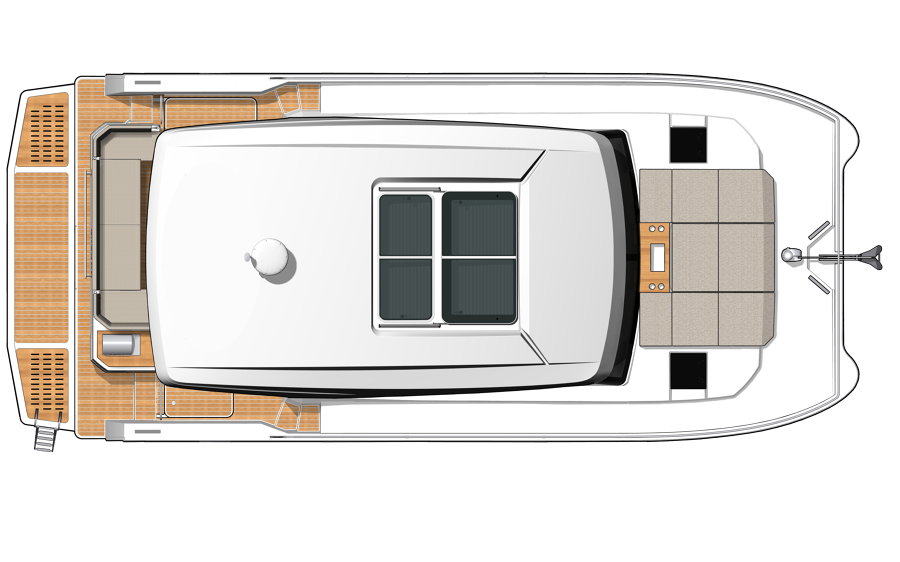

DECK LAYOUT

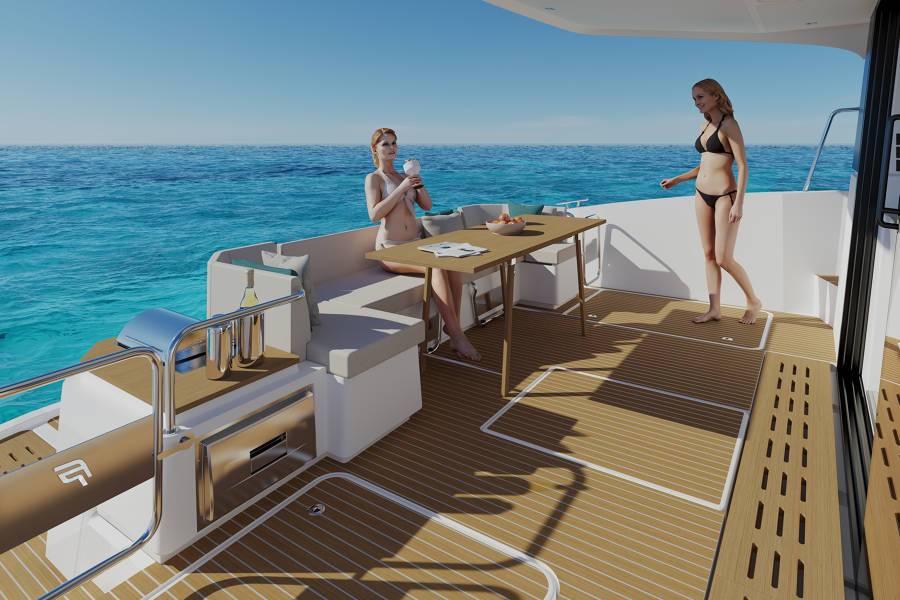

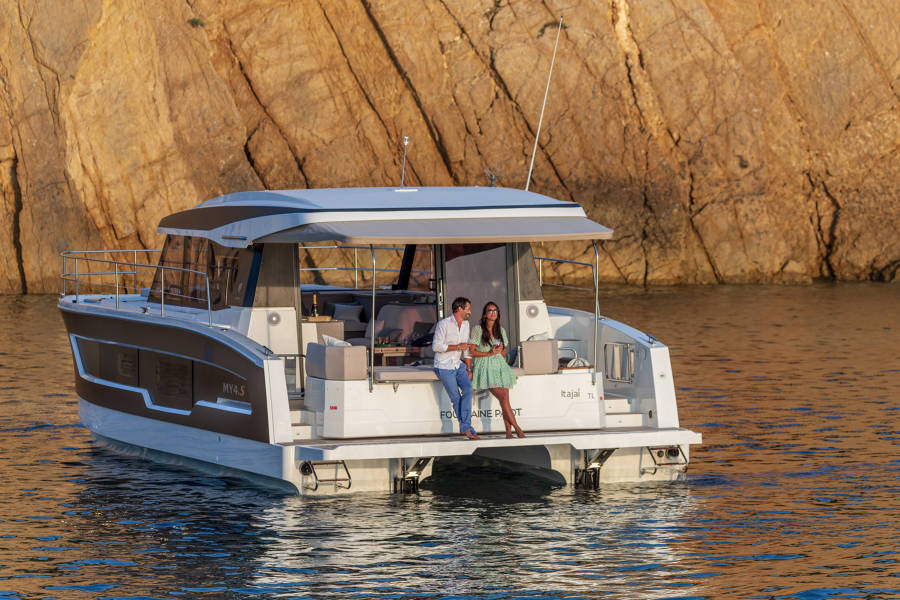

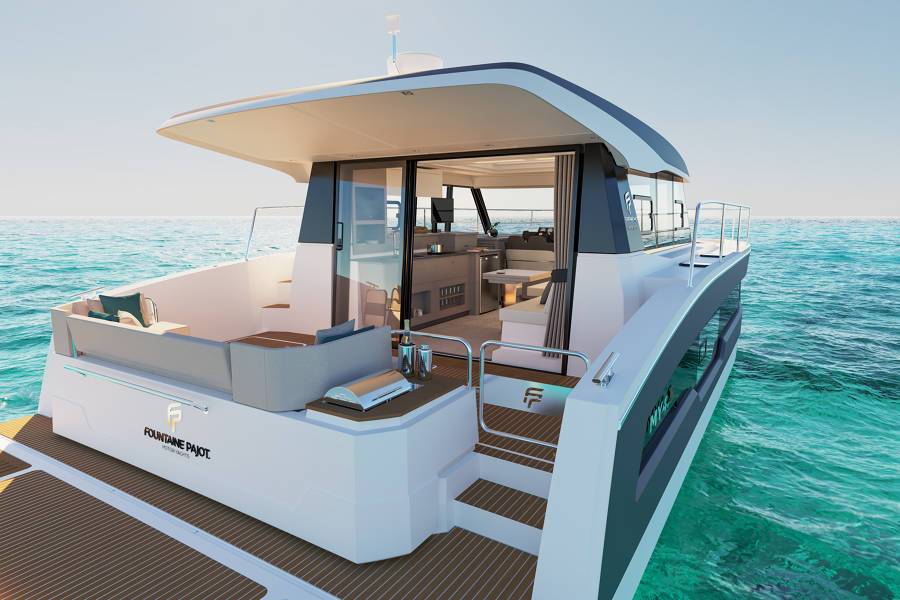

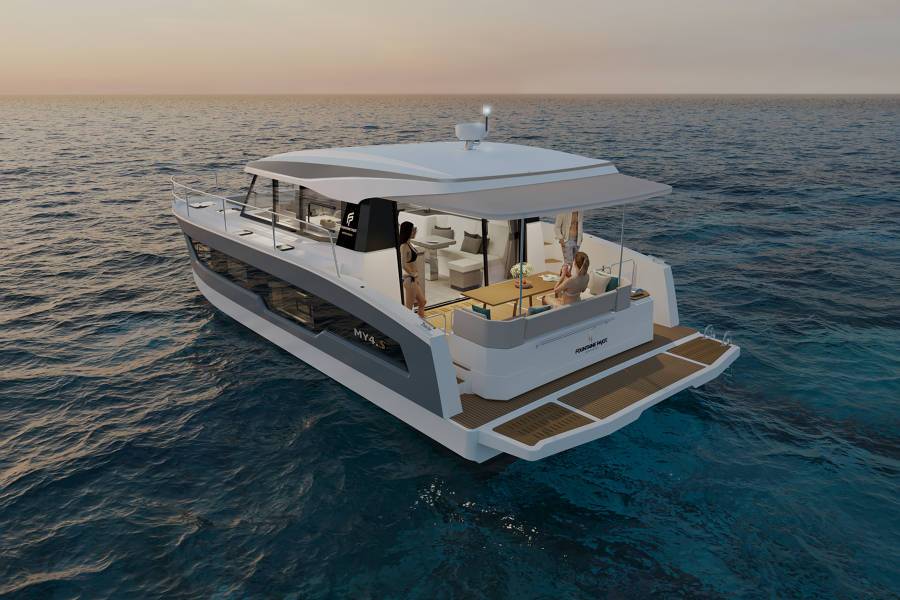

Cockpit

• Large bench for 5 with backrest and storage compartments
• Bench convertible in a large sun bed
• Gas locker
• Large storage compartment under floor
• Access to aft skirts
• Lighting by watertight spotlights

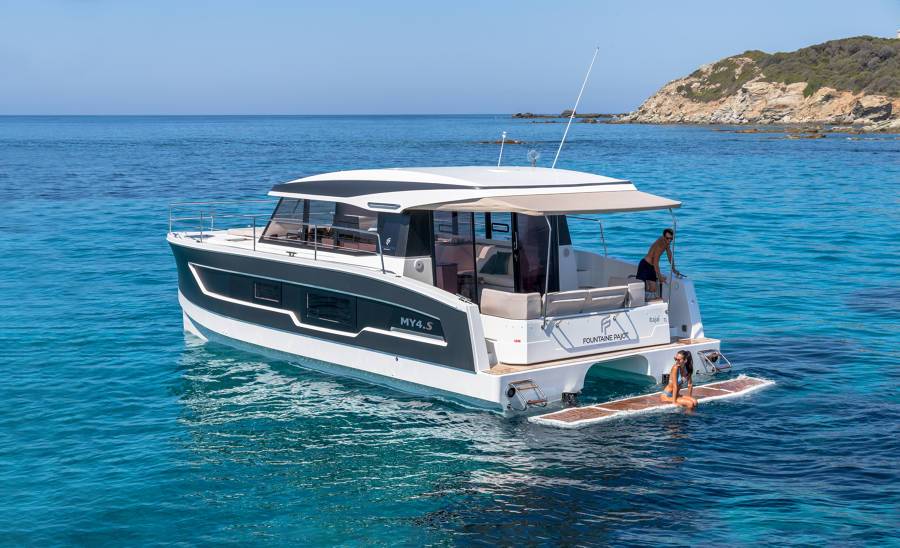

Aft skirts

• Runs on side platforms bath and boarding
• Platform between the skirts
• 1 ladder
• 1 cold water shower
• Safe Gas

Engine rooms

• Access via polyester deck hatch on the cylinder in the cockpit
• High performance sound insulation
• 1 neon light

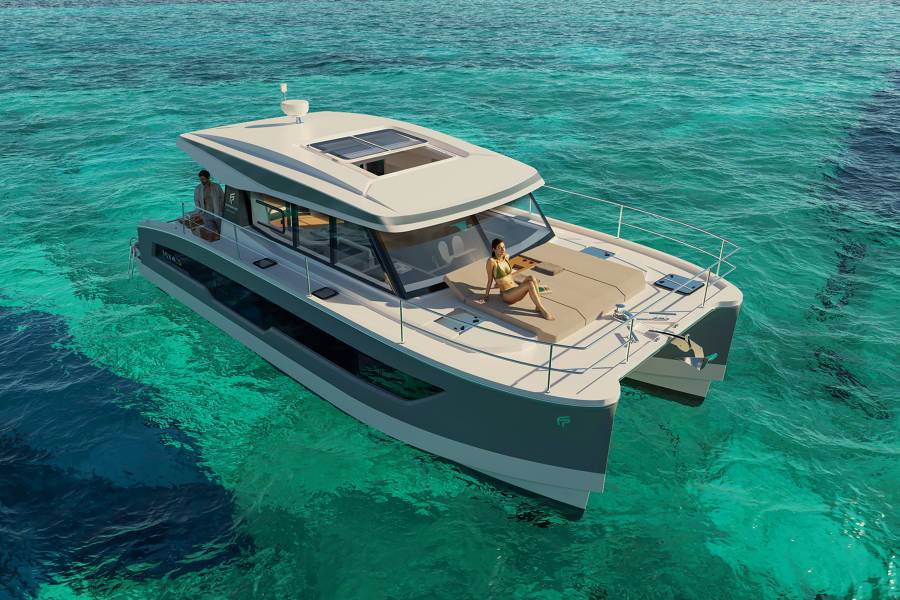

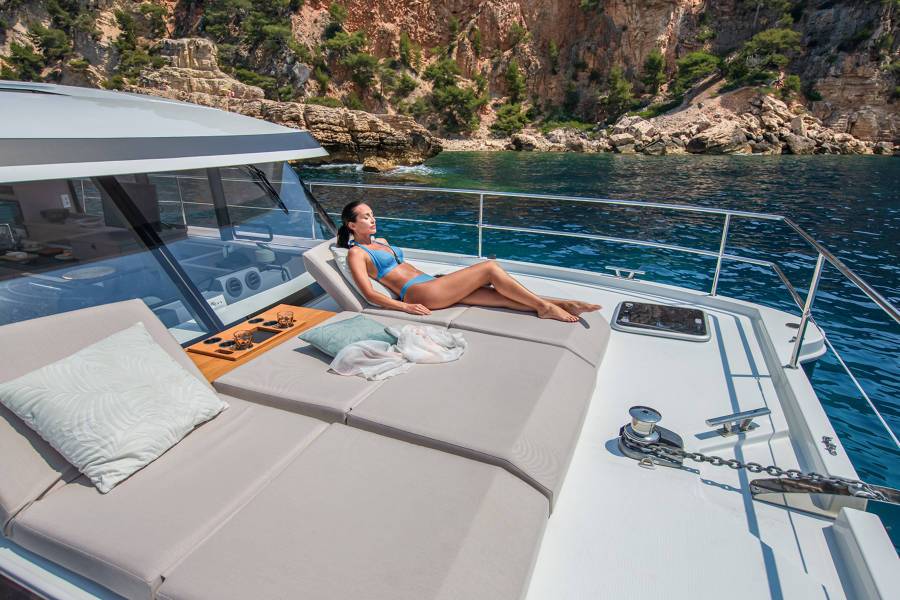

Fore deck

• Side nav lights
• Large locker (storage & chain locker)
• Windlass & mooring
• Lounge deck area

Sport top

• Large sky light fixed window
• Mooring & Nav light on mast

Engines

Engines and equipment:

• 2 Yanmar 150hp diesel engines
• Direct shaft Lines
• 2 four blade propellers
• Engine cooling by sea water exchanger
• Engine compartment ventilation by airflow + mechanical air extraction
• Switchboards and electrical controls at helm station

Fuel system:

• Independent 2x 600L diesel tanks approx. - independent circuit’s port and starboard
• Electric fuel gauges
• 1 pre-filter fuel water separator + 1 anti-bacteria filter per engine
• Closing valves

Plumbing

• Freshwater tank (350 L approx.) with electric gauge
• Fresh water self-priming pump with electronic pressure sensor
• 40l water heater
• Electrical automatic bilge pump in each engine hold
• Electrical automatic bilge pump in each hull
• Hand-operated external bilge pump
• Visual and audible bilge pumps alarm in the saloon
• One 130 L centralized holding tank

Electrical / Electronics

12V power circuit

• Set of batteries for onboard energy supply (345 A/h 12 V) on port side
• Two set of engine start batteries (50 A/h 12V)
• Manual emergency connection between port & starboard engine batteries
• Charge of each batteries sets by dedicated alternator (3 alternators)

12V Distribution

• Multiplexed distribution of 12V functions with control panel at saloon entrance
• 3.5’’ touch screen for monitoring (batteries, tanks, functions, …) & control at helm
station interfaced with Garmin screen (option)
• Available output for optional equipment

Fittings

• Hydraulic helm system with trimmed steering wheel
• 2 rudders linked via hydraulic circuit
• Complete peripheral pulpit with rigid stainless steel lifeline
• One swim ladder on starboard transom
• 7 stainless steel mooring cleats (2 forward + 2 midships + 2 aft) + 1 central cleat
• 12V / 1000W electrical windlass circuit breaker protected
• Anchor davit
• 4 fenders
• Two 15m long mooring lines

All dimensions provided by way of information only.
